Brand Name : Hongruntong Marine
Model Number : HM-DH135
Certification : ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Place of Origin : Qingdao, China
MOQ : 1
Price : USD13 to USD185 Per Piece
Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability : 4528 Pcs Per Month
Delivery Time : 5-7 Work Days
Packaging Details : Wooden Pallet, Wooden Box
Material : NBR
Reinforcement : Rubber, cord fabric and wire reinforcement
Length : Customized Length
Connection : Flange, Coupling
Working Pressure : 10-21 Bar
Application : Dredging Project
Color : Black, Yellow, Orange, Or As Request
Temperature : -40℃ to +120℃
Safety Factor : 3:1
Usage : Suction for slurry, sand, etc
Armored dredge hoses are heavy-duty hoses designed for highly abrasive dredging applications where extreme durability is required. These hoses feature embedded steel rings or wear-resistant ceramic layers to withstand high-impact loads and extend lifespan. They are widely used in mining, large-scale dredging, and gravel pumping projects, where conventional dredge hoses may wear out quickly. The reinforced structure provides excellent resistance to internal and external pressure, ensuring safe and efficient operation in demanding environments. Armored dredge hoses offer high flexibility, superior abrasion resistance, and long service life, making them ideal for handling large volumes of coarse materials. Available in custom diameters, lengths, and pressure ratings, they are a perfect solution for high-performance dredging systems.


| Material of Rubber | NR, NBR, SR, CR and etc |
| Material of Flange | Q235B carbon steel paint |
| Reinforcement Layer | Steel Wire Spiral |
| Size | 1/2" to 32" |
| Working Pressure | 5-22 Bar or As Requested |
| Brand | Hongruntong Marine |
| Application | Water irrigation, mud dredging, water suction etc |
| Packing | Plastic Belt Packing |
| Working Temperature | -40 ℃ ~ +120 ℃ |
| Warranty | 36 Months |
| MOQ | 1 |
| Model | I.D. | W.P. | B.P. | Min Bending Radius | Wear Layer Thickness | Length |
|---|---|---|---|---|---|---|
| inch | mm | bar | bar | mm | mm | m | |
| HM-F150 | 6 | 150 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-F200 | 8 | 200 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-F250 | 10 | 250 | 5-10 | 15-30 | 8D | 10-20 | 11.8 |
| HM-F300 | 12 | 300 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-F350 | 14 | 350 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-F400 | 16 | 400 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-F450 | 18 | 450 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-F500 | 20 | 500 | 10-20 | 30-60 | 12D | 12-25 | 11.8 |
| HM-F600 | 24 | 600 | 15-20 | 45-60 | 15D | 20-30 | 11.8 |
| HM-F650 | 26 | 650 | 15-20 | 45-60 | 15D | 20-30 | 11.8 |
| HM-F700 | 28 | 700 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-F750 | 30 | 750 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-F800 | 32 | 800 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-F850 | 34 | 850 | 20-25 | 60-75 | 15D | 30-50 | 11.8 |
| HM-F900 | 36 | 900 | 25-30 | 75-90 | 15D | 30-50 | 11.8 |
| HM-F1000 | 40 | 1000 | 25-30 | 75-90 | 15D | 50-75 | 11.8 |
| HM-F1100 | 44 | 1100 | 25-30 | 75-90 | 15D | 50-75 | 11.8 |


|
|

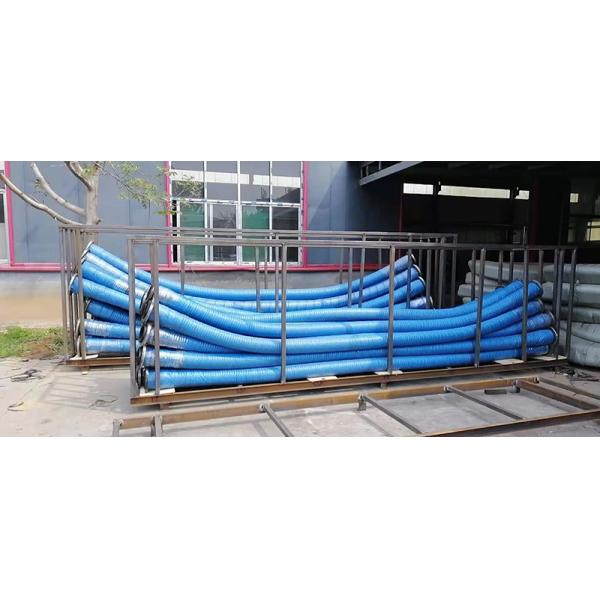

Custom Thickness 6 Inch Dredge Rubber Hose For Mining And Dredging Industry Images |
