Corrosion Resistant Floating Dredging Pipeline Anti Aging Marine Pipeline Customized Size

Product Categories

Dredge Hose [21]
Dredging Rubber Hose [19]
Discharge Hose Pipe [20]
Slurry Suction Hose [21]
Floating Dredge Hose [20]
Mining Hose [21]
Dredge Pipeline [15]
Floating Pipeline [15]
Ceramic Hose [19]
Hose Floats [20]
Rotary Drilling Hose [21]

Hongruntong Marine (Beijing) Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Corrosion Resistant Floating Dredging Pipeline Anti Aging Marine Pipeline Customized Size

Name: Corrosion Resistant Floating Dredging Pipeline Anti Aging Marine Pipeline Customized Size
Brand: Hongruntong Marine
Price: 100 USD

Wholesale Corrosion Resistant Floating Dredging Pipeline Anti Aging Marine Pipeline Customized Size from china suppliers

Brand Name : Hongruntong Marine

Model Number : HM-FP74

Place Of Origin : China

Certification : ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS

MOQ : 1

Price : USD100 to USD980 Per Piece

Payment Terms : D/A,L/C,D/P,T/T,Western Union

Supply Ability : 2490 Pieces Per Month

Delivery Time : 5-6 Work Days

Packaging Details : Wooden Pallet, Wooden Case

Productname : Floating Pipeline

Applications : Oil And Gas Transport, Water Supply, Sewage Discharge

Operatingtemperaturerange : -40°C To 80°C

Lifespan : 20 To 30 Years

Installationmethod : Laid On Water Surface Or Submerged With Anchors

Safetyfeatures : Leak Detection Systems And Emergency Shut-off Valves

Environmentalimpact : Minimal, Designed To Reduce Seabed Disturbance

Material : NBR

Contact Now

Accommodates Wave Current Movements Floating Pipeline Laid On Water Surface Or Submerged With Anchors Supporting Operating Pressure Up To 10 MPa

Product Overview

Hongruntong Marine, a leading manufacturer of marine equipment, specializes in providing customized Floating Pipeline (Floating Hose) solutions to meet the diverse needs of global offshore and coastal projects. Our floating pipelines are widely applied in dredging, offshore oil and gas transfer, port construction, marine reclamation, aquaculture water supply, and flood control, serving as a flexible and reliable conveyance tool for different media such as slurries, water, oils, and gases.

We deeply understand that different projects have unique requirements for pipeline diameter, length, pressure rating, buoyancy, and media compatibility. Our professional R&D team and flexible production lines enable us to offer personalized customization services tailored to your specific project needs.

Corrosion Resistant Floating Dredging Pipeline Anti Aging Marine Pipeline Customized Size

Key Features

Saltwater & Chemical Corrosion Resistance: Outer cover fabricated from premium synthetic rubber (CSM/Neoprene), offering strong resistance to saltwater, acidic/alkaline media, and chemical corrosion
UV & Anti-Aging Protection: Outer rubber layer infused with UV stabilizers and anti-aging agents, effectively resisting cracking, hardening, and degradation from prolonged sunlight exposure
Superior Flexibility & Adaptability: Designed with high flexibility to naturally conform to wave motion, tidal shifts, and dynamic movement of connected equipment
Precision Quick-Connect Design: Equipped with precision-engineered flange connections or quick-connect couplings for fast, leak-proof installation and reconfiguration

Technical Applications

Port and terminal expansion
Underwater pipeline connection
Mineral slurry transportation
Freshwater and seawater transfer

Model Specifications

Model	Dimensions (mm)	Dimensions (inch)	Working Pressure (bar)	Working Pressure (psi)	Safety Factor	Bending Radius (mm)	Weight (kg)	Length (m)
HM-FP20	20	3/4"	16	230	6:1	80	0.8	40
HM-FP25	25	1"	16	230	6:1	100	1	40
HM-FP32	32	11/4"	16	230	6:1	125	1.3	40
HM-FP40	40	11/2"	16	230	6:1	140	1.5	40
HM-FP50	50	2"	16	230	6:1	180	2.5	40
HM-FP65	65	21/2"	16	230	6:1	200	3.3	40
HM-FP80	80	3"	16	230	6:1	260	4	40
HM-FP100	100	4"	16	230	6:1	380	6.8	40
HM-FP125	125	5"	16	230	6:1	440	9.2	40
HM-FP150	150	6"	16	230	6:1	500	13.2	40
HM-FP200	200	8"	16	230	6:1	750	18	40
HM-FP250	250	10"	16	230	6:1	900	26	25

*Note: Various sizes can be customized according to project requirements.

Performance Advantages

Ultra-High Wear Resistance: Specially formulated thick inner tube engineered to combat extreme abrasion from high-concentration sand, gravel, and rock slurries
Vacuum Pressure Rating: Heavy-duty steel wire reinforcement maintains structural strength under high vacuum suction conditions
Tidal Level Fluctuation Adaptability: Exceptional longitudinal flexibility to naturally rise and fall with changing tides and water levels
Low Friction Flow Bore: Smooth internal bore design minimizes pressure drop and reduces energy consumption

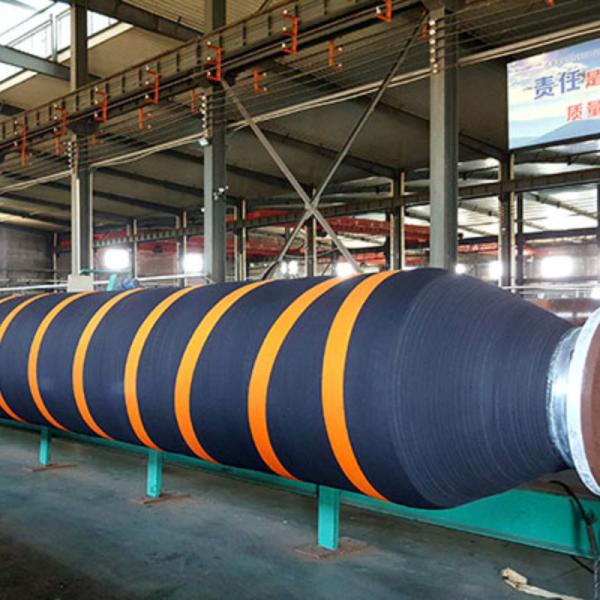

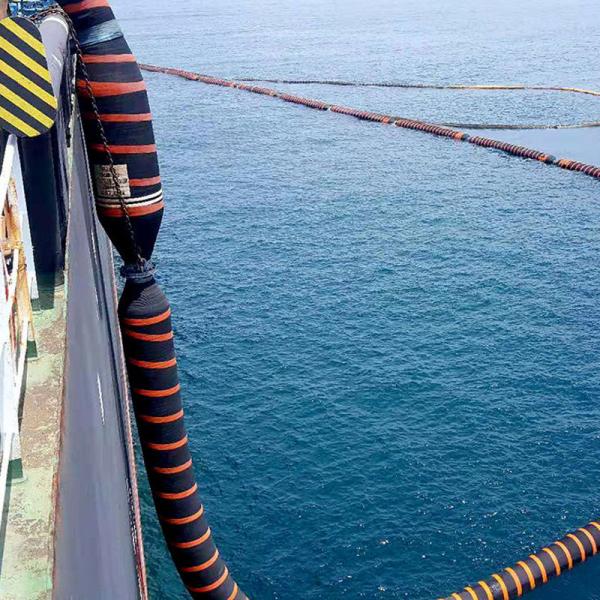

Product Gallery

Corrosion Resistant Floating Dredging Pipeline Anti Aging Marine Pipeline Customized Size

Frequently Asked Questions

Can the floating pipeline withstand prolonged sunlight exposure in offshore wind farm environments?

Absolutely. Its outer cover is infused with UV stabilizers and anti-aging agents, resisting cracking, hardening, and degradation from long-term sunlight exposure.

What makes your floating pipeline suitable for dredged material disposal?

It features an ultra-high wear-resistant inner tube, specifically formulated to resist erosion from high-concentration sand, gravel, and silt slurries, ensuring long service life in continuous dredging operations.

Can the floating pipeline handle high vacuum pressure during dredged material suction?

Yes, it is reinforced with multiple plies of high-tensile steel wire, maintaining structural strength under high vacuum suction conditions without collapse or leakage.

How does the pipeline adapt to tidal level fluctuations during dredging?

Its exceptional longitudinal flexibility allows it to naturally rise and fall with tides and water level changes, eliminating the risk of grounding or excessive tension.
